تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة خام: | أسلاك الفولاذ منخفض الكربون | جغرافية: | 300 جم / قياسي |
|---|---|---|---|
| قطر شبكة: | سلك القطر 4.0mm | أبتشر: | 3 بوصة (76.2 ملم × 76.2 ملم) |
| T / S.: | 500 - 800 ميجا باسكال | مُكَمِّلات: | عنصر أساسي ، مورد دبوس مشترك للحواجز الدفاعية |
| إبراز: | Military Barrier Geotextile Defense Wall,Portable Military Barrier Quick Install,Anti-Strike Military Barrier Arabia,Portable Military Barrier Quick Install,Anti-Strike Military Barrier Arabia |
||

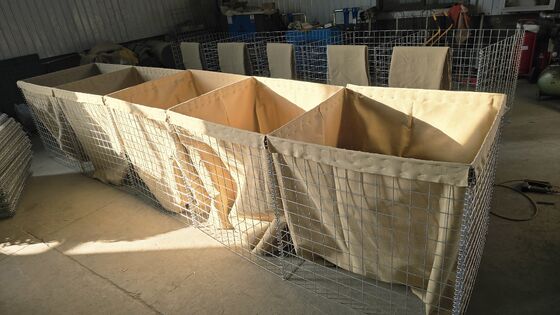

Geotextile Military Bastion Barrier Defense Wall Arabia Portable Quick Install Anti-Strike Producing Abilty
Heavy-duty galvanized steel mesh outer shell
High-strength geotextile inner liner for sand/soil filling
Collapsible design for flat-pack storage and transport
Stackable and interconnectable for continuous wall construction
No tools or heavy machinery required for assembly
The Standard Technical Barrier For Military Defense Specifications from SX 1 to SX 19
| Parameter | Details |
|---|---|
| Material | Q235 galvanized wire + PP geotextile |
| Unfolded Size | 1200×1000×500 mm (customizable) |
| Filled Weight | Approx. 800–1200 kg (depending on fill material) |
| Empty Weight | 18–25 kg |
| Mesh Aperture | 50×50 mm |
| Wire Diameter | 4.0 mm |
| Lifespan | 5–8 years (outdoor exposure) |
42"(1.06M) 32'9"(10M) SX-2 24"(0.61M) 24"(0.61M) 4'(1.22M) SX-3 39"(1.00M) 39"(1.00M) 32'9"(10M) SX-4 39"(1.00M) 60"(1.52M) 32'9"(10M) SX-5 24"(0.61M) 24"(0.61M) 10'(3.05M) SX-6 66"(1.68M_ 24"(0.61M) 10'(3.05M) SX-7 87"(2.21M) 84"(2.13M) 91'(27.74M) SX-8 54"(1.37M) 48"(1.22M) 32'9"(10M) SX-9 39"(1.00M) 30"(0.76M) 30'(9.14M) SX-10 87"(2.21M) 60"(1.52M) 100'(32.50M) SX-11 48"(1.22M) 12"(0.30M) 4'(1.22M) SX-12 84"(2.13M) 42"(1.06M) 108'(33M) SX-19 108"(2.74M) 42"(1.06M) 10'5"(3.18M)
